Conception, Construction and Evaluation of a Raspberry Pi Cluster (3/4)

The goal of this work is to create an affordable, energy efficient and portable mini-supercomputer. Ideally, a cluster computer with little or no carbon footprint, individual elements that are inexpensive to replace, and a portable system that can be easily disassembled and reassembled.

Construction

The practical part of the work, the construction, follows the step-by-step explanation of how to assemble, install and configure the Raspberry Pi cluster. The installation instructions and scripts used in the following are either available from the sources mentioned or from the GitHub repository http://github.com/segraef/PiCube. All installation and configuration steps are easy to follow, so that it is easy to build the cluster on your own.

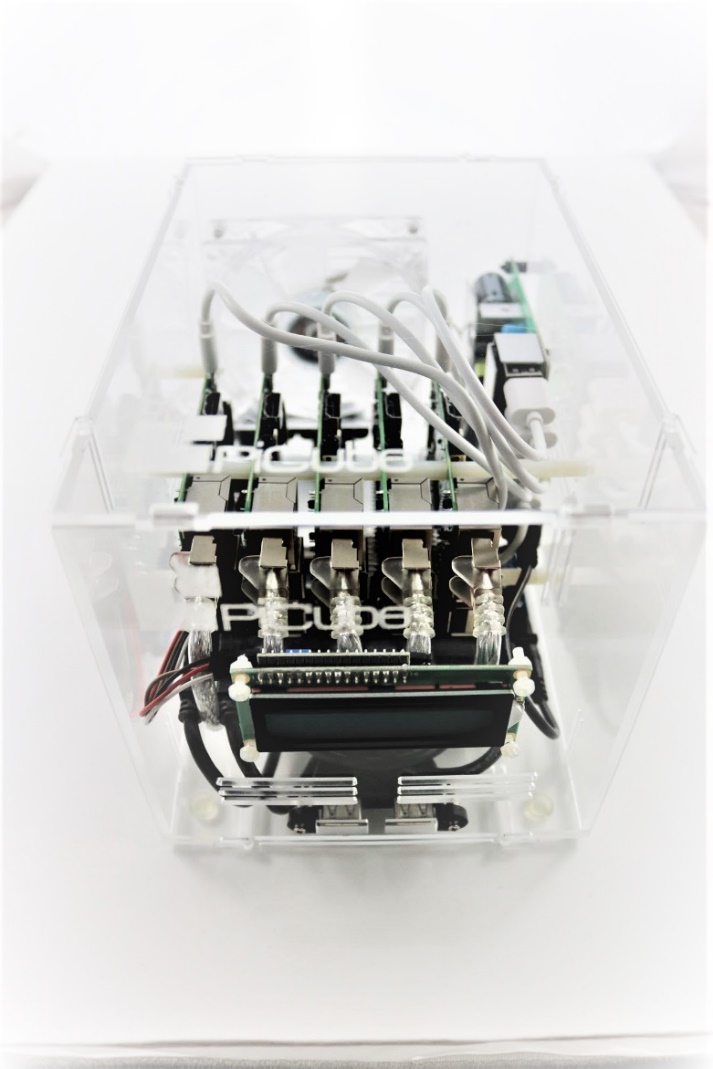

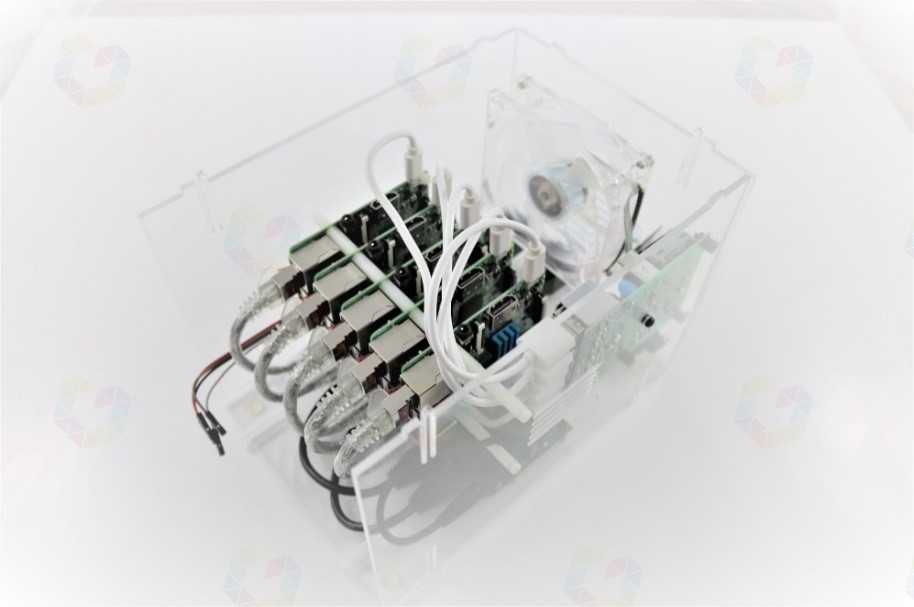

Mounting and wiring

Elastic clips (see Simplicity) allow the individual case sides to be easily plugged together without the use of screws. The pre-milled holes for the switch, USB charger and LCD display allow the individual components to be attached using the plastic nuts and screws. Pre-milled holes for the LCD display, network ports, HDMI port, and power connector provide the proper slots for the cables to be subsequently connected outside of the case. The assembly is done according to the steps mentioned below:

1. Connecting the single board computers together using hex spacers.
2. Screw on the attached Raspberry Pis on the left inner side.
3. Attachment of the switch to the base plate.
4. Attaching the LCD display and USB sockets to the front panel.
5. Screwing the USB charger to the right side plate.
6. Mounting the case fan, HDMI and network jacks.

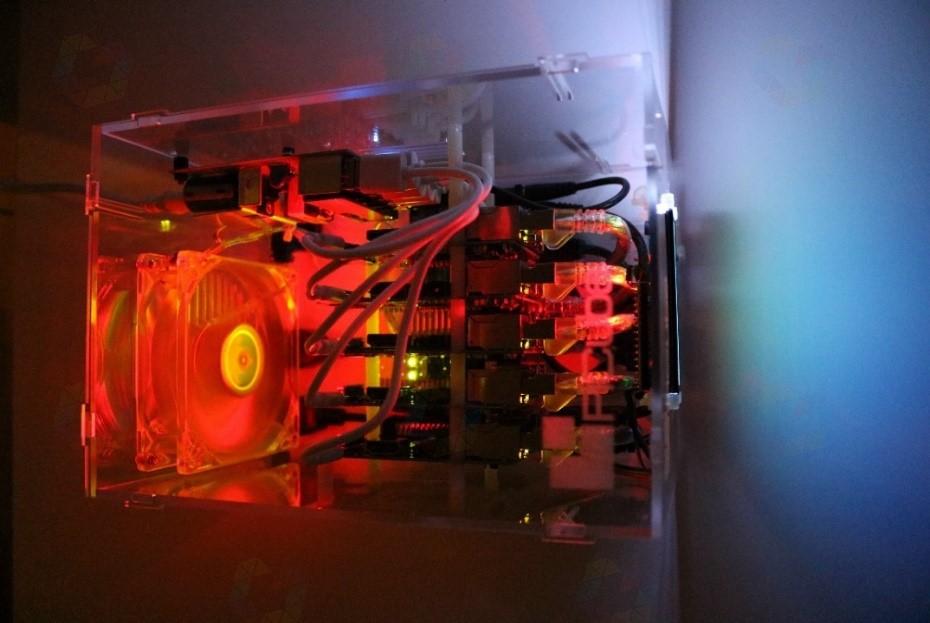

After the entire interior has been assembled, the side panels are clipped in step by step. To do this, start with the base plate, onto which the left and right side plates are clipped and clipped together. Before assembling the front panel, we wire the individual components. LCD displays only work by being powered and controlled. A total of 4 cable jumpers are used for this purpose. Two of them are for power and the other two are for control and transmission signals which we connect to GPIO pins 2, 3, 5 and 6 of one of the Raspberry Pis which acts as a master node. All mini computers are connected to the switch using RJ45 network cables. Likewise, we connect the cables of the network jacks to the switch, which serve as network port extensions. Micro-USB cables are typically used for data transfer, in this scenario they are only used for powering the individual single-board computers.

We connect the network switch and all Raspberry Pis to the USB charger using the USB cables. We connect the case fan with its 3-pin connector to the GPIO ports 2 and 6 of one of the Raspberry Pis to supply it with power. After all the necessary cables and components are connected, we move on to the cluster installation. The following two images show the PiCube in a partially and fully wired state.

Installation

Operating system

To provide a suitable developer system and, to meet all requirements, we use the HypriotOS operating system as the base system for the cluster. The OS provides a Docker-optimized Linux kernel and is therefore ideally suited for this cluster. It already includes all the required modules such as Docker Engine, Docker Machine and Docker Compose. HypriotOS is an operating system specially developed for Raspbery Pi, which is based on the Linux distribution Debian. Important prerequisites for the successful operation of a cluster system are identical and redundantly designed hardware (see Cluster) and the cluster software that can run on it. Among other things, this concerns the same software and driver versions for all participating nodes. To ensure that the cluster system maintains a homogeneous operating system and version structure on all nodes, we use operating system images. [^56]

Imaging and provisioning

For the installation of Raspberry Pi operating systems, memory images are used. Images are disk images in a compressed file that contains files, file system structures, and boot sectors. Simply put, an image contains an exact disk copy of an operating system. The advantage of using images is that an operating system does not have to be installed. In order for this exact disk copy to be deployed in our nodes, we copy the contents to SD cards and deploy them in our cluster nodes. Using the Hypriot flash tool, the hostname is passed to the image and is thus hardcoded for the first boot of the Raspberry Pi. Hardcoded means that values, such as the hostname in this case, are passed into the startup configuration of the operating system and are called and used when the system starts. The following code snippet (see Listing 1) shows the command that sets the hostname rpi1 for the image package hypriotos-rpi1-v1.6.0.img.zip after downloading the HypriotOS image from the address https://github.com/hypriot/image-builder-rpi/releases/download/v1.6.0/. [^57]

1

flash \--hostname rpi1 https://github.com/hypriot/image-builder-rpi/releases/download/v1.6.0/hypriotos-rpi-v1.6.0.img.zip

Listing 1: The HypriotOS image is downloaded and copied to the SD card using flash.

YAML Ain't Markup Language (YAML) is a markup language and gives us the possibility to create customized parameters for a startup configuration. Thus, it is very easy to pass values into a configuration which will be initialized and applied when each node is started for the first time. Examples for start parameters, which can be preconfigured:

• Hostname
• WLAN -SSID
• WLAN password
• Static or dynamic IPaddress

The YAML files for our nodes look like this, with the hostname for the respective Raspberry Pi adjusted accordingly:

1
2
3
4
5
6

hostname: "rpi"
wifi:
    interfaces:
        wlan0:
        ssid: "WLAN"
        password: "2345251344834395"

Listing 2: Example of a YAML configuration.

Fixed WLAN parameters lets individual nodes connect to an existing wireless network. We copy this configuration to the image in the /boot/ directory. The following code snippet shows setting the YAML configuration using flash. This accesses /boot/device-init.yaml on initial startup and copies the appropriate parameters to the operating system's startup configuration:

1

flash \--config https://github.com/hypriot/image-builder-rpi/releases/download/v1.6.0/hypriotos-rpi-v1.6.0.img.zip

Listing 3: The HypriotOS image is downloaded, copied to the SD card using flash and a given YAML configuration.

Time is precious and, in order to save it, we prepare the respective image for each individual Raspberry Pi and thus take advantage of the automatic provisioning. Due to the use of a total of 5 cluster nodes, the manual installation, configuration and maintenance of each individual node would be very time-consuming. Therefore, we provision every single operating system in advance, which means we use a master image that already contains current driver versions and software packages. We modify this system image for each individual node by means of a YAML configuration, so that only the host name has to be entered and is thus hard-coded or hard-configured. As soon as the system starts, it takes the hardcoded hostname value from its startup configuration and boots with it. Flash is used to provision the remaining 4 nodes with the host names rpi2, rpi3, rpi4 and rpi5 respectively.

Commissioning of the cluster

After all SD cards are prefabricated and inserted into the individual Raspberry Pis, the cluster is put into operation and the system is connected to the power. After all systems get power, the LCD display and the individual LED s of the Raspberry Pis light up one after the other, signaling their operation (see Figure 26). The startup process of the single-board computers happens quite quickly and the systems are ready for the next step, the actual configuration of the cluster, after about 30 seconds.

Cluster configuration

Installing and configuring Kubernetes

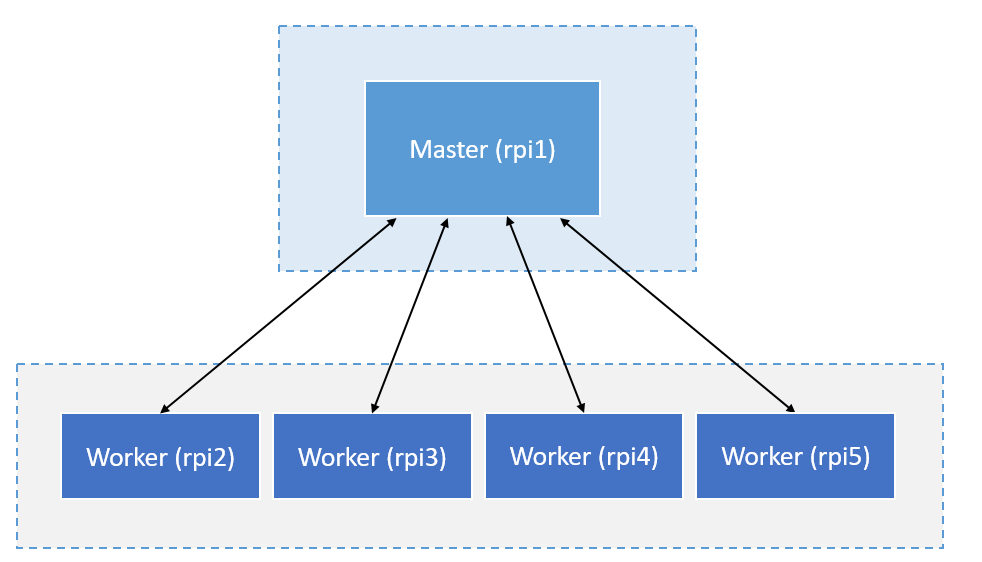

All five nodes are now configured in the same way as described below, the order is not decisive here. The connection to the individual Raspberry Pis is established via Secure Shell (SSH). In order to establish this secure connection over the network, the terminal program putty is used. As soon as the connection is established, a "sudo update" is performed to update the current package installation lists to the latest version. Afterwards, "sudo upgrade" is used to update all the correspondingly required software packages for Docker. The next step is to install Kubernetes using the following command:

1

curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key add - && echo "deb http://apt.kubernetes.io/ kubernetes-xenial main" | sudo tee /etc/apt/sources.list.d/kubernetes.list && sudo apt-get update -q && sudo apt-get install -qy kubeadm

Listing 4: Command to install Kubernetes.

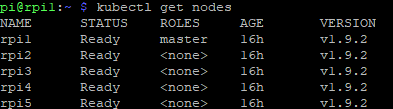

Here, the corresponding Kubernetes installation package is downloaded and installed. Now the node rpi1 is selected and the command sudo kubedm init is executed to initialize the cluster. Thus, the cluster is created and rpi1 is set as the master node. All other hosts are added to the cluster as worker nodes using the kubeadm join command. After the last node is successfully added, the command kubectl get nodes is used to check whether all nodes are ready and added to the computer cluster (see Figure 27).

The Kubernetes cluster now has an active master node. If this node ever fails, the kube-controller-manager (see Google Kubernetes) detects this and decides which of the worker nodes will step in as the new active master.

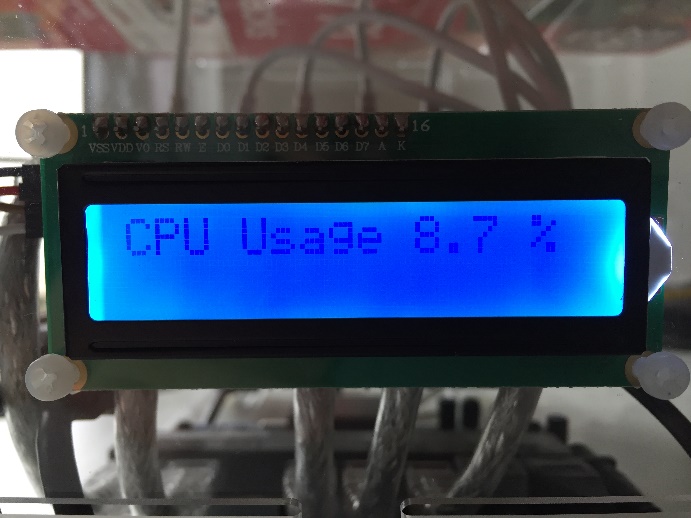

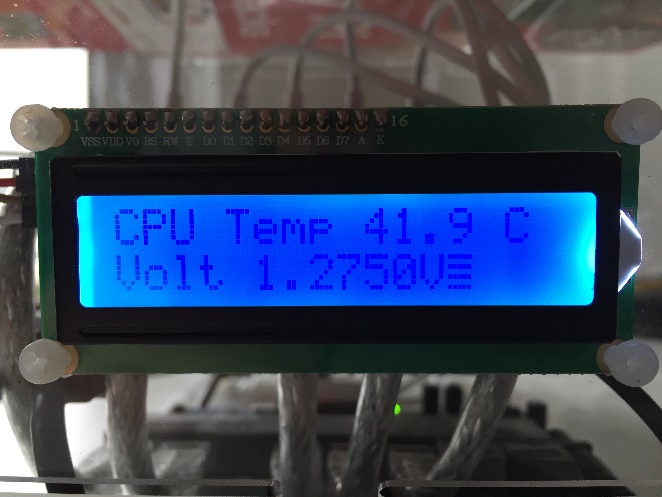

Configuration LCD display

In order for the LCD display to show the corresponding values IP addresses, system time, temperature and status information, a corresponding Python script is used. This script is executed automatically at every startup and delivers status values to the LCD display via I2C. [^58]

Evaluation
