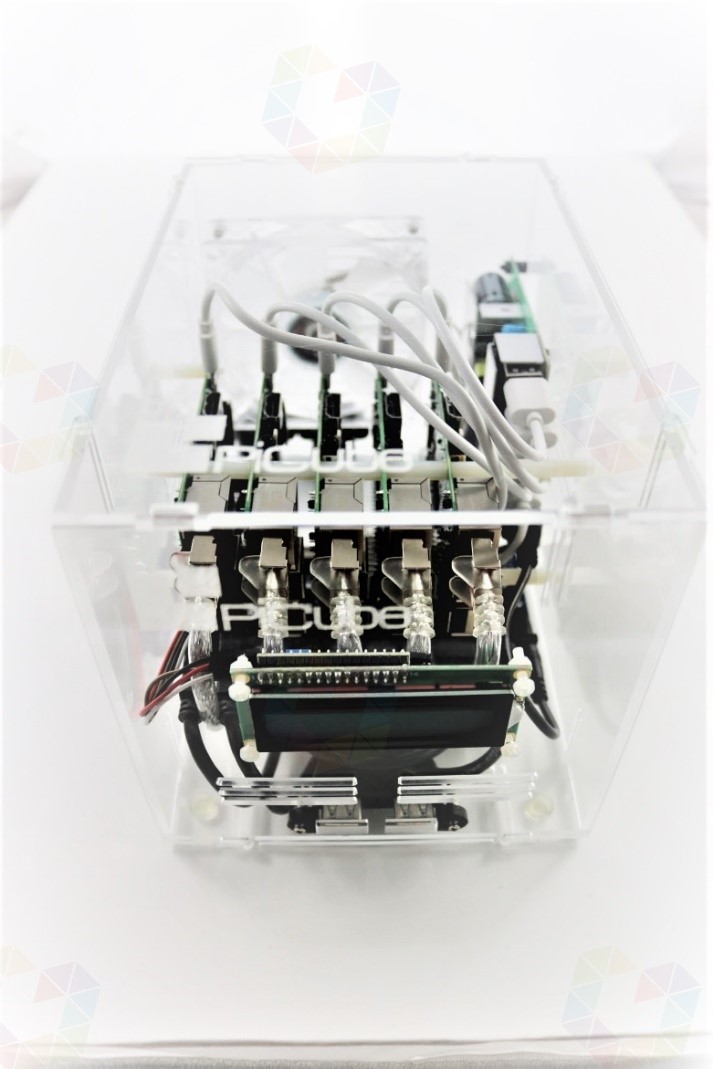

Conception, Construction and Evaluation of a Raspberry Pi Cluster (1/4)

The goal of this work is to create an affordable, energy efficient and portable mini-supercomputer. Ideally, a cluster computer with little or no carbon footprint, individual elements that are inexpensive to replace, and a portable system that can be easily disassembled and reassembled.

Introduction

Raspberry Pis are revolutionizing the computer industry. Originally developed to provide low-cost computers to schools, they are expanding far beyond their intended use. This inexpensive technology can be used to accomplish previously unexplored tasks. One such technology is a cluster computer that can run parallel jobs. Many systems built for parallel computing tasks are either expensive or unavailable outside of academia. Supercomputers are expensive to purchase as well as to use, power, and maintain. Although average desktop computers have come down in price, the cost can still become quite high if they require a larger amount of computing power. In today's world of information technology (IT), it is not new to be confronted daily with new technologies such as cloud computing, cluster computing or high-performance computing. All these terms are approaches that are intended to simplify people's work and lives. Cloud providers such as Microsoft or Amazon make these types of technologies available to customers in the form of services for a fee. Users thus have the opportunity to use the computing power of these technologies without having to buy them at a high price. The advantage here is the almost unlimited scaling of resources. Distributed computing, an infrastructure technology and basis for the provision of cluster computers via the Internet, is used to meet increasing resource demands. By interconnecting and adding remote systems, computing power and performance can be dynamically scaled and provided in theoretically unlimited quantities.

Motivation and objective of the work

Unlimited computing power implies the solution approach to be able to solve seemingly unsolvable and complex problems, such as the simulation of black holes or the calculation of the Milky Way. Expensive supercomputers are oversized when it comes to testing new applications for high-performance computers or solving complex problems. In this work, we address the question of whether we can create an independent and comparable but also less expensive system with few resources, which allows us to solve complex problems in the same way. 24 years ago, Donald Becker and Thomas Sterling started the Beowulf project to create a low-cost alternative but also a powerful alternative to supercomputers. Based on this example, the idea has arisen to pursue the same principle on a smaller scale. The goal of this work is to create an affordable, energy efficient and portable mini-supercomputer. Ideally, a cluster computer with little or no carbon footprint, individual elements that are inexpensive to replace, and a portable system that can be easily disassembled and reassembled. A Raspberry Pi is ideal for this purpose because of its low price, low power consumption, and small size. At the same time, it still offers decent performance, especially when you consider the computing power offered per watt.

Procedure

This paper is divided into 5 parts. The first part is dedicated to the terminological clarification of background information on all technologies involved and how they are related to the cluster. Based on this, the second part clarifies the conceptualization, design, and requirements placed on the system. The main part deals with the construction of the Raspberry Pi cluster and thus forms the practical component, in which design decisions are illustrated and the construction is explained. Following this, important factors such as scalability, performance, cost and energy efficiency are discussed and evaluated. Different use cases are addressed and the technical possibilities are considered. Finally, evaluated evaluations are summarized, limitations are pointed out and future extensions are presented.

Background

This chapter covers the basic technologies that form the basis of parallel and distributed systems. These technologies build on each other, as in a layer system, and are dependent on each other. Architectures and techniques based on this, such as virtualization or cluster computing, in turn provide the basic framework for container virtualization and its management systems.

Parallel and distributed systems

Until computers evolved into distributed computing systems, there have been fundamental changes in various computing technologies over the past decades, which we will briefly discuss in order to make the basic framework of parallel and distributed systems more understandable.

Amdahl's and Gustafson's law

At the beginning of this work, the theoretically unlimited increase of computing power was mentioned. Amdahl's law (named in 1967 after Gene Amdahl) deals exactly with this question, namely whether an unlimited increase in speed can be achieved with an increasing number of processors. It describes, how the parallelization of a software affects the acceleration of this. One divides thereby the software into not parallel, thus sequentially executable and parallel executable portions. Sequential parts are process initializations, communication and the memory management. These parts are necessary for the synchronization of the parallel parts. They form dependencies among themselves and are therefore not able to be executed in parallel. Parallel executable parts are the processors, which are used for computation. It is very important to estimate how much performance gain is achieved by adding a certain number of processing units in parallel working system. Sometimes it happens that adding a larger number of computing units does not necessarily improve the performance, because the expected performance tends to decrease or oversaturate if we blindly add more computing resources. Therefore, it is very important to have a rough estimate of the optimized number of resources to use. Suppose a hypothetical system has only one processor with a normalized runtime of $1$. Now we consider how much time the program needs in the parallelizable portion and denote this portion by $P$. The runtime of the sequential part is thus $(1 - P)$.

The runtime of the sequential part does not change, but the parallelizable part is optimally distributed to all processors and therefore runs N times as fast. This results in the following runtime formula: [^1]

$$\underset{\text{sequential}}{\overset{(1 - P)}{︸}} + \underset{\text{parallel}}{\overset{\frac{P}{N}}{︸}}$$

This is where the time gain comes from:

$$Time\ gain\ according\ to\ Amdahl$$ $$= \ \frac{original\ duration}{\text{new\ duration}}$$ $$= \frac{1}{(1 - P) + \frac{P}{N}}$$

Here N is the number of processors and P the runtime portion of the parallelizable program. Gene Amdahl called the time or also speed gain Speedup. With the help of a massive parallelism the time of the parallelizable portion can be reduced arbitrarily, the sequential portion remains unaffected thereby however. As the number of processors increases, the communication overhead between the processors also increases, so that above a certain number, they tend to be busy communicating rather than processing the problem. This reduces the performance and refers to this as an overhead in the task distribution. A program cannot be completely parallelized, so that all processors are always busy with work at the same time. No matter how many processor units are used and the proportion of applications that cannot be parallelized is, for example, one percent, the speedup can be a maximum of 100. Gene Amdahl thus concluded that it makes no sense to keep increasing the computing units in order to generate unlimited computing power. [^2]

Amdahl's model remains valid until the total number of computing operations remains the same while the number of computing units continues to increase. However, if in our hypothetical simulation the job size increases while the number of computational units continues to increase, then Gustafson's law must be invoked. John Gustafson established this law in 1988, which states that as long as the problem being addressed is large enough it can be efficiently parallelized. Unlike Amdahl, Gustafson shows that massive parallelization is nevertheless worthwhile. A parallel system cannot become arbitrarily fast, but it can solve arbitrarily large problems in the same amount of time. [^3]

Client-server model

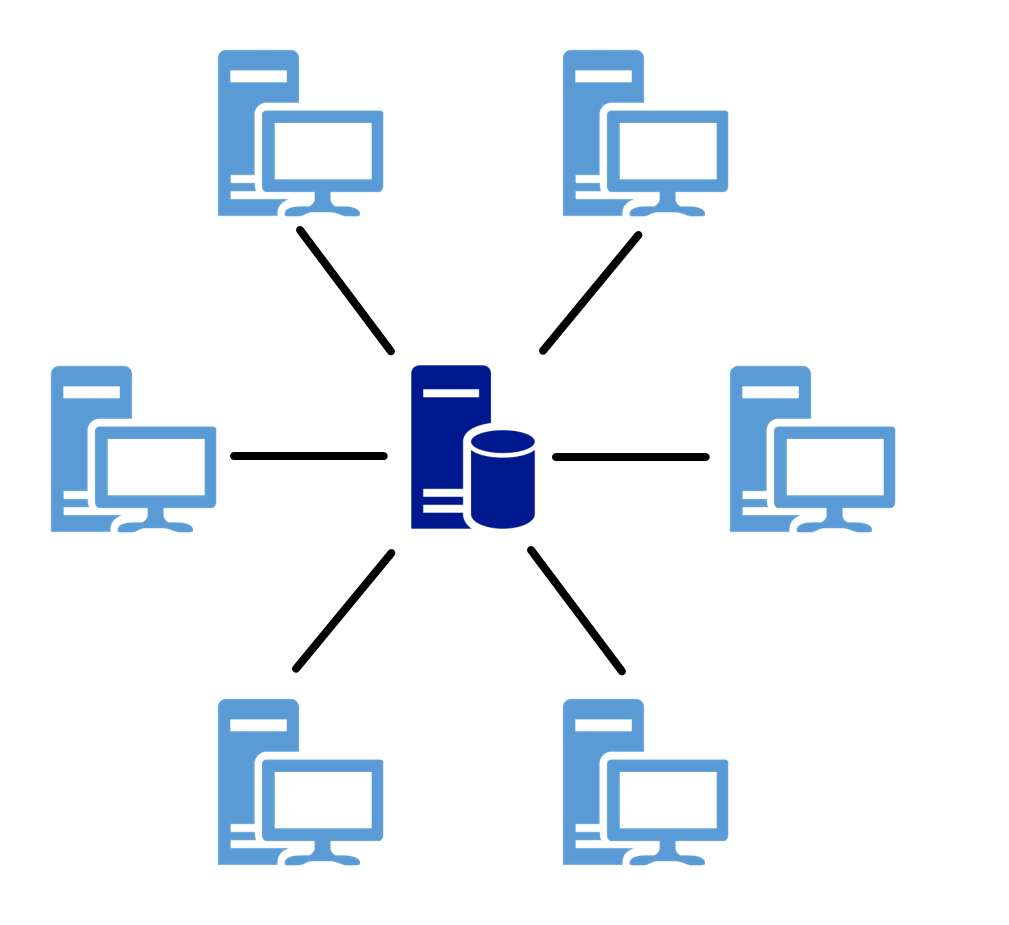

Client-server models are the basic techniques for operating distributed systems. They describe the principle of how tasks and services, such as sending e-mail or providing web applications, are distributed within a network. The corresponding service is centralized on a specific computer, called a server, and the other machines (clients) can use this service. [^4]

Operating systems (OS) such as Red Hat Enterprise Linux or Windows Server use the above concept and thus provide a client-server system. This is done by establishing the connection to the server on the client side and providing access to services and resources on the server side. Within these operating systems servers are simple programs, which are usually started automatically and run passively in the background. In the Linux environment these programs are called "daemon", under Windows Server they are called "service". In practice, however, different types of these server services are usually encountered. Examples of this are: [^5]

• Mail server: Communication service for electronic mail (e-mail).
• Web server: Transmitting web pages to clients.
• File server: A file server makes files available on a network.

Peer-to-peer

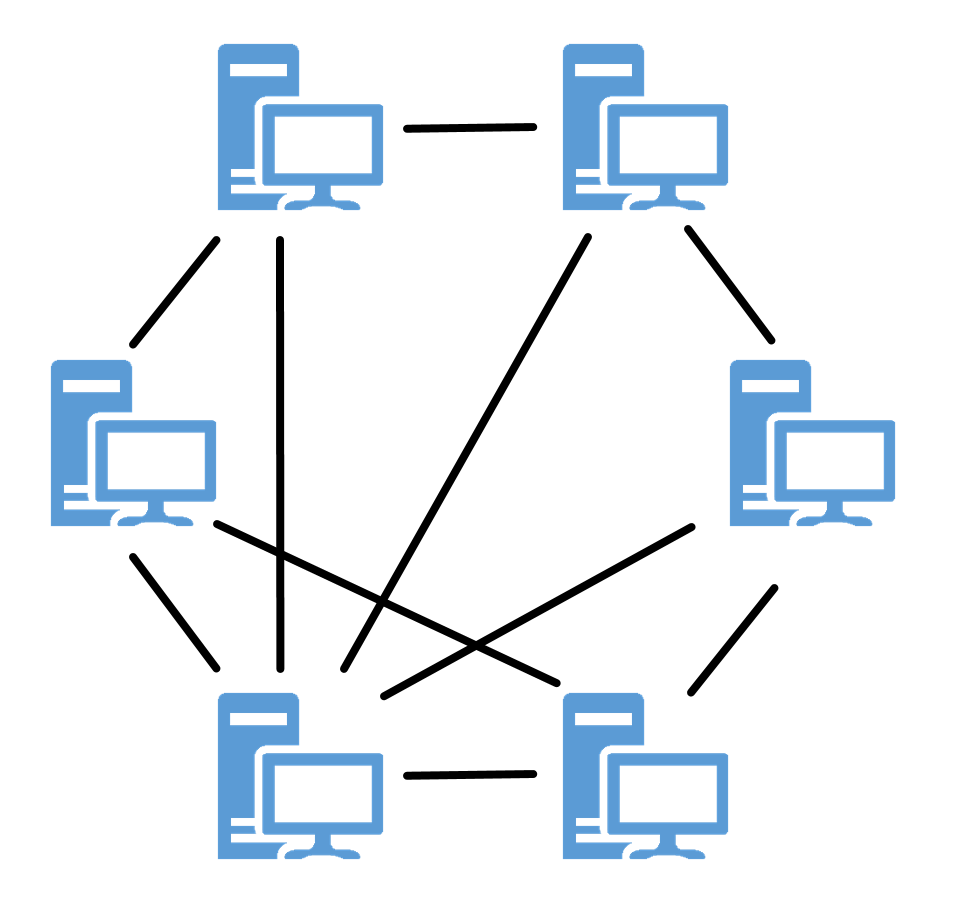

Peer-to-peer (P2P) systems are the opposite of client-server systems. In client-server networks, a server is not necessarily a specific computer. Server and client are referred to as roles in this context, since a computer can also act as a server and a client at the same time. In a P2P system, this distribution of roles does not exist; all computers have equal rights. A computer in a network is a peer because it can be a client and a server at the same time. It can both use and provide services. The functionality, the provision of a service, is therefore provided decentrally in a P2P system. [^6]

In contrast to the client-server concept, parallel and distributed systems are not based on P2P systems, but they have been part of the development process of grid and distributed computing and are therefore worth mentioning. [^7]

Grid Computing

The volume of data records in databases is increasing and will continue to increase in the coming years. Cluster systems (see Cluster) were developed to handle the complex processing involved and have since become established. However, the demand for computing power and storage capacity is becoming ever greater, especially in scientific areas such as medicine and research or in commercial areas such as e-commerce or financial management. Due to global networking of scientific working methods and international cooperation, more and more information technologies and infrastructures are being interconnected to create collaborative working environments. [^8]

Grid computing is a distributed computing technique that aims to connect loosely coupled computers and clusters and combine the computing power of all distributed resources into a virtual supercomputer. The basis for integrating these location-independent, cross-institutional, and autonomous resources is the use of existing network infrastructures such as the Internet. The major advantage over cluster systems is the aggregation and sharing of resources such as computers or databases across geographical boundaries. [^9]

Grid computing can be divided into the following classifications:

• Computing Grid: access to distributed computing resources.
• Data Grid: Access to distributed data volumes and storage capacity.
• Service Grid: Access to distributed applications and services.

A computing grid is comparable to a power grid. For the consumer, everything that happens behind a socket is hidden, but he can conveniently use the power offered, the electricity. A computing grid is similar in comparison, it connects to the computing network and uses the computing power offered. High costs or lack of financial resources pose solving complex problems as a difficulty for scientific and economic institutions. But due to the possibility like, the bundling of resources of different organizations, it is possible to solve computationally intensive problems cost-efficiently. [^10]

Public Resource Computing

As an analogous counterpart to grid computing, public resource computing (PRC) and volunteer computing have emerged to harness hidden computing power using distributed computing.

The idea and background of this type of distributed computing are that the use of supercomputers is very cost-intensive, on the other hand processors of many computers, such as those of personal computers (PC), servers or smartphones are not fully utilized. Many users work on their PCs with programs that use only part of the total processor power. To make these unused computing resources usable, a corresponding software client is installed on the respective PCs or servers, which establishes the connection to a computing grid, takes over task distribution and makes unused computing power available. [^11]

The software platform Berkeley Open Infrastructure for Network Computing (BOINC) enables the use of this unused computing power of thousands of computers. Examples of computationally intensive PRC projects and complex problems include creating an accurate three-dimensional (3D) model of the Milky Way, searching for extraterrestrial radio waves, and calculating gravitational waves. An example of a special research project that exploits the benefits of grid computing, and can only be realized using it, is grid-based computer simulations of gravitational waves generated by the merger of two singularities (black holes) (see Figure 3). [^12]

Other well-known RPC projects using BOINC are: [^13]

• SETI @home (Search for Extra-Terrestrial Intelligence at home): study of radio signal data from the Arecibo Observatory radio telescope in Puerto Rico used as evidence of extraterrestrial technology.
• MilkyWay@home: research in modeling and determining the evolution of the Milky Way Galaxy.
• Einstein@home: The project examines data collected by the LIGO and GEO600 gravitational wave detectors for evidence of periodic sources, such as rapidly rotating neutron stars, which are the gravitational equivalent of pulsars (pulsating radio sources).

It is worth mentioning the successes and cost savings achieved through the use of public resource or volunteer computing. Certainly it is possible to solve complex problems through high performance and supercomputers but not with such a small part of costs. For example, the University of Westminster, based in London, has been able to show savings of around £500,000 by using a BOINC supercomputer. [^14]

Distributed Computing

Distributed computing or distributed systems, as defined by Andrew S. Tanenbaum, is a collection of independent computers that appear to their users as a single unified system. Distributed computing resource processing deals with the coordination of these distributed computers. In contrast to cluster systems, most computers have different hardware and operating systems. In some cases, resources and programming languages vary greatly. The basic requirement for these machines to work together and exchange data is that they are connected via a network. [^15]

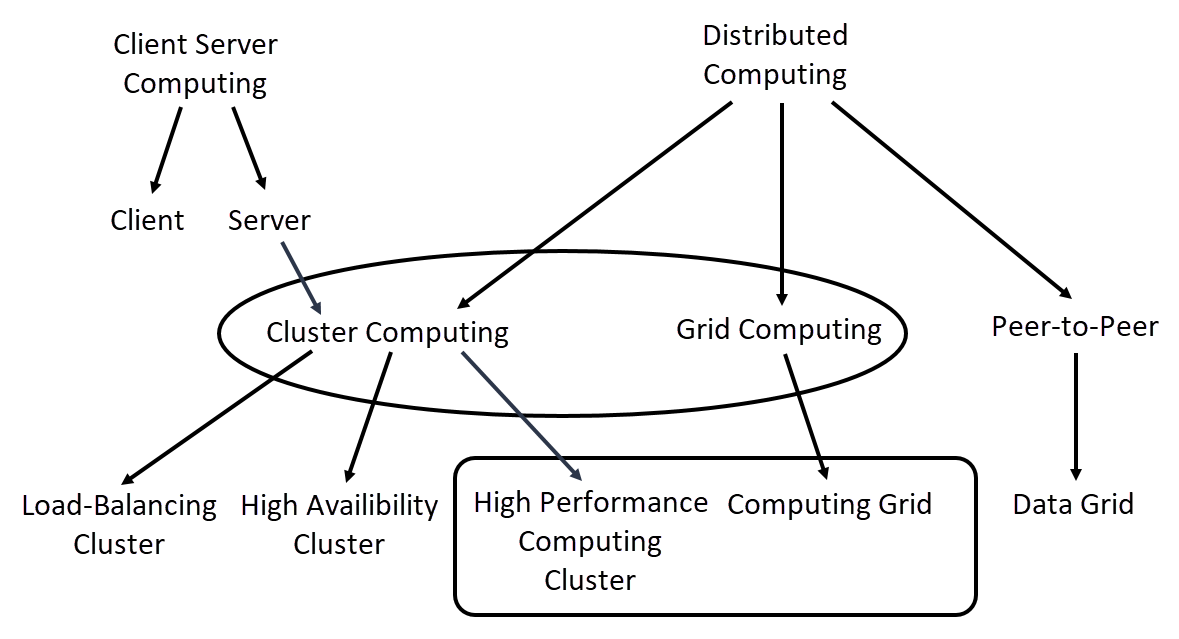

The computing technologies mentioned so far fall under the umbrella term distributed computing. Figure 4 shows how these technologies are classified collectively into distributed computing and, among others, into client-server computing and peer-to-peer.

Communication networks such as the Internet form the basis for distributed systems and give the opportunity to connect geographically distant computers. The following prerequisites must be observed to prevent problems: [^16]

• Concurrency: Concurrency in the execution of programs must be ensured. As soon as services and applications are executed in a network of computers, this usually happens at different times and independently of other computers. To ensure this concurrency of applications, it must be possible to scale the system, which means that additional computers can be added to the network as the demand for resources increases.
• Time synchronization: As soon as systems act together, messages must be exchanged so that appropriate coordination is possible. Messages such as "System A is performing this action" and "System B is performing this action". For proper coordination of these messages, timestamps are needed to enable proper sequencing of these messages within the distributed system. One method of synchronizing system time is to synchronize with external atomic clocks outside of distributed systems or to use a shared time server that uses the Network Time Protocol (NTP), a standard protocol for synchronizing clocks on the Internet.
• Partial failure: Any system, no matter how well secured, can fail, even if it has an availability of 99.9%. The probability of a failure is still 0.1%, which is already a very large amount for a high number of systems. Care must therefore be taken to ensure that there is no single point of failure (SPOF), the failure of which would result in the failure of the entire system. Other prerequisites, especially in terms of security, that must be taken into account are the use of firewalls and virtual private networks (VPNs). As soon as sensitive data and information are transferred from services on the Internet via distributed resources, these can fall victim to network attacks. Without appropriate security mechanisms, information can be stolen or even falsified. With the help of firewalls, only certain resources can be granted access by means of defined security policies. Using a VPN, entire segments of distributed systems can be isolated and compartmentalized by encrypting the entire network data transmission. [^17]

Cloud computing

Cloud computing is used as a term to represent this vision of computing as a service. A cloud is defined as a set of Internet-based application and computing services so that local data storage and application software can be largely or completely dispensed with. From a technical perspective, cloud computing describes the approach of making IT infrastructures, such as physical or virtual hardware, available via a computer network without the user or cloud user having to install anything on their own computer. Cloud providers such as Microsoft or Amazon make these types of technologies available to customers in the form of services for a fee. Users thus have the option of using the computing power of these technologies without having to buy them at a high price. By providing and managing the cloud infrastructure through the provider, the overall costs are reduced and optimized to a minimum.

The main advantages of using cloud computing are the almost unlimited scaling of resources, such as computing units or storage capacities. If, for example, a user wants to use a very large quantity of cloud services, it is only a question of cost. The higher a service scales, the higher the costs borne by the customer. [^18]

Grid computing is seen as the forerunner of cloud computing, although the focus is more on scientific projects and the system is decentralized, i.e. shared. In contrast to grid computing, cloud computing is, from a first perspective, a centralized solution. From a technical point of view, however, and depending on how a cloud service is used by the user, cloud resources can be globally distributed and must communicate with each other in a network for this purpose. This in turn is similar to the approach of grid computing, since a corresponding coordination of these distributed resources is necessary. The most important providers of cloud computing services are currently Amazon Web Services (AWS), Microsoft with its Azure cloud platform, and Rackspace. [^19]

In practice, the following three abstraction or business models have become established for the provision of cloud services: [^20]

• On-premise: On-premise means on the customer's own premises or locally on site. The customer is responsible for managing its own IT infrastructure, which it usually administers in its own data center and on its own hardware.
• PaaS - Platform as a Service: The maintenance and management of hardware, operating systems and runtime environments for computer programs is taken over by the cloud provider. The user focuses only on his applications. A typical example of PaaS is scalable SQL databases (structured query language).
• IaaS - Infrastructure as a Service: The entire infrastructure consisting of network, storage, server hardware and virtualization layer (see Container Management Systems) is provided by the cloud provider. The user assumes responsibility for the upper layers such as the operating system and applications.
• SaaS - Software as a Service: In this model, the entire hardware and software infrastructure is offered and managed. The user thus has the option of directly using software services, such as web servers or e-mail, without any effort.

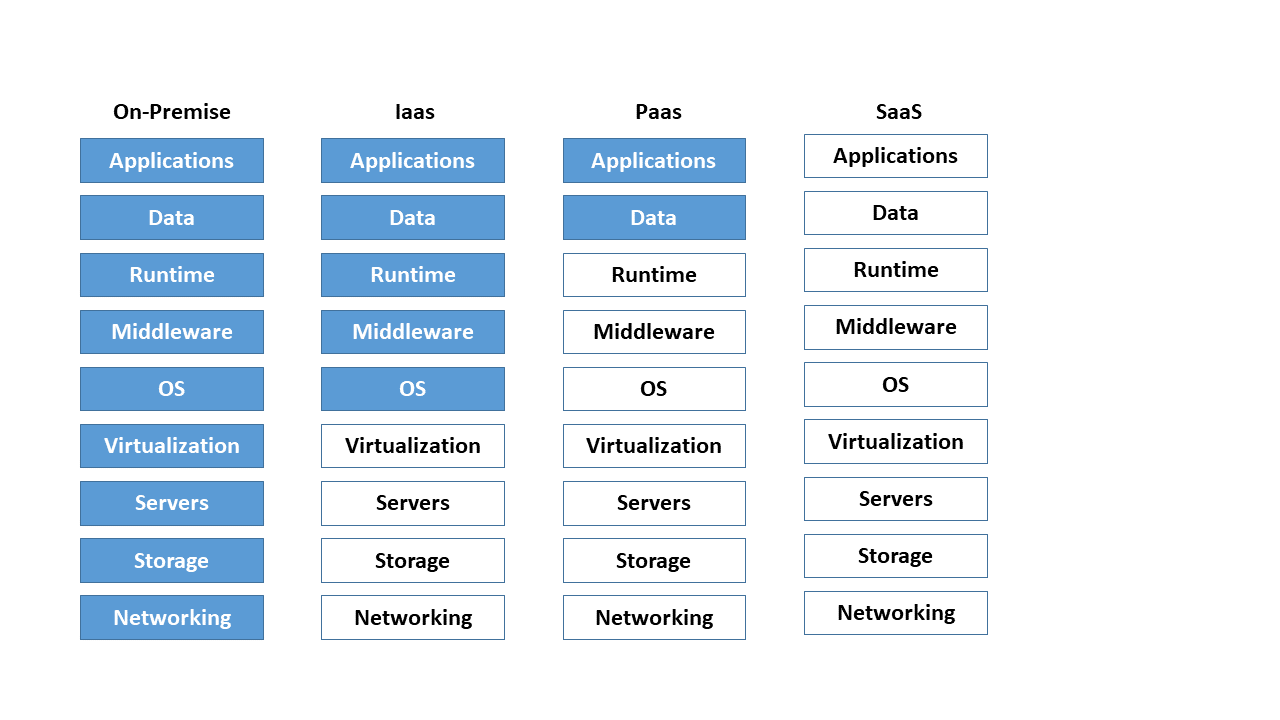

The figure below shows a breakdown of the business models mentioned. Here, blue denotes the company's own share of the administration effort. Neutral stands for the segments which the cloud provider manages and administers.

As soon as the term cloud is mentioned, it predominantly refers to a specific usage model of cloud computing. The various types of these usage models are defined below: [^21]

• Private cloud: The English term "private" translates into German as "privat" and, in the context of cloud, stands for "not for the public". A company uses a private cloud in a secure environment such as its own internal network. This does not necessarily mean that the IT infrastructure used is the property of the company, as it can also be provided by third parties. Private merely clarifies that a company is the sole user of this model. This has the advantage that it retains control in terms of data protection, even if third-party providers such as Amazon or Microsoft manage private cloud environments.
• Public cloud: A public cloud provides access to abstracted IT infrastructures and services for a large number of users. Customers can use services and infrastructures via the Internet. Examples are file hosting services such as Google Drive from Google Inc. or Dropbox from Dropbox Inc.
• Hybrid cloud: A hybrid form of the two variants mentioned above is the hybrid cloud. Users are offered the option of processing business-critical data with a focus on data protection in private cloud environments. Non-sensitive data is made available in the public cloud using cloud services such as IaaS or PaaS on the Internet. Hybrid clouds offer a further advantage in that performance peaks occurring at short notice are compensated for by shifting services from the private to the public cloud. Hybrid clouds enable the gradual merging of public and private cloud services in order to be able to utilize existing infrastructure hardware for as long as possible.

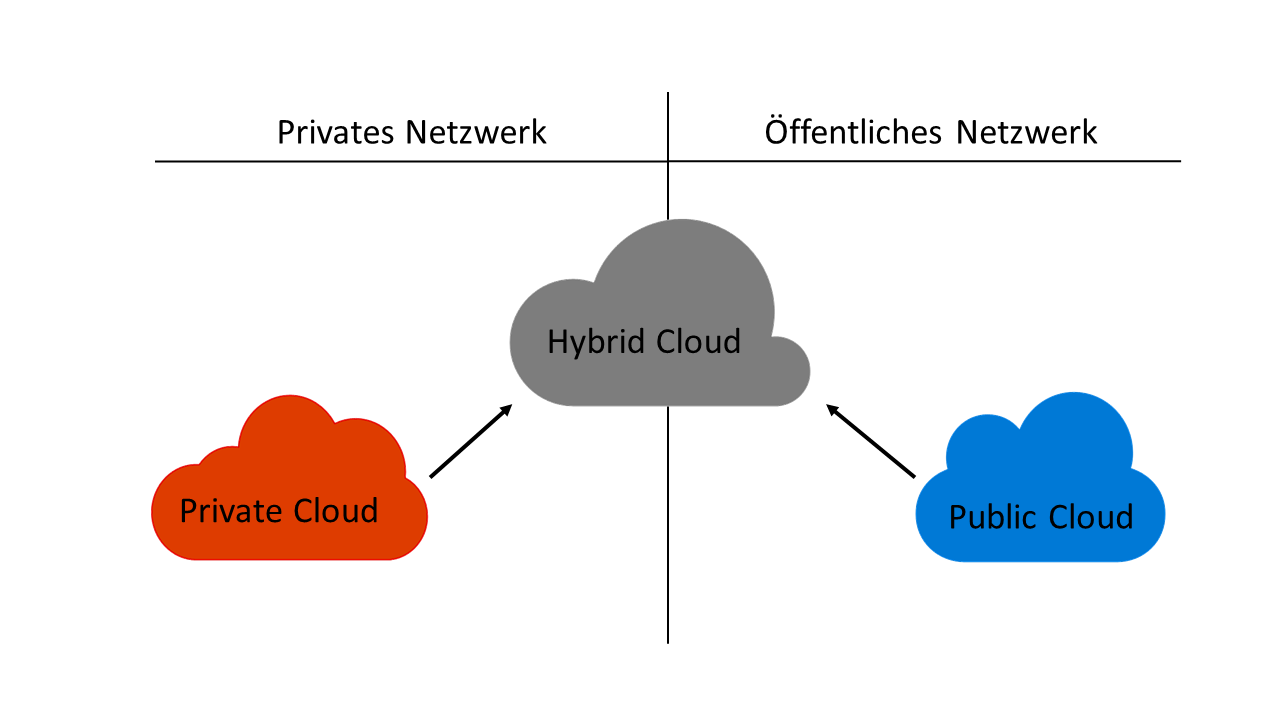

Figure 6 shows an overview of private, public and hybrid cloud environments and illustrates the relationship between a private and public network. For example, a private network is a VPN, while the Internet belongs to the public network segment.

Other noteworthy business models in which cloud computing is subdivided are community cloud, virtual private cloud and multi-cloud, which we will not discuss in detail in this paper.

Cluster

A cluster is a computer network and usually refers to a group of at least 2-n servers, also called nodes. All nodes are connected to each other via a local area network (LAN) and form a logical unit of a supercomputer. Gregory Pfister defines a cluster as follows: [^22]

"A cluster is a type of parallel system that consists of interconnected whole computers and is used as a single, unified resource. “ [^23]

Clusters are the approach to achieving high performance, high reliability, or high throughput by using a collection of interconnected computer systems. Depending on the type of setup, either all nodes are active at the same time to increase computing power, or at least 1-n node is passive so that it can stand in for a failed node in case of failure. For data transmission, all servers are connected to each other via at least two network connections to a network switch. Two network connections are typical, since on the one hand the switch is excluded as SPOF, and on the other hand to be able to realize a higher data transfer. [^24]

With reference to the current Top 500 list of the world's fastest computers, the term supercomputer is absolutely appropriate. It is clear that several cluster systems are among the ten fastest computers in the world. Computer clusters are used for three different tasks: providing high availability, high performance computing and load balancing. [^25]

Shared and distributed storage

According to the von Neumann architecture, a computer has a shared memory that contains both computer program instructions and data. Parallel computers are divided into two variants in this respect, systems with shared or distributed memory. Regardless of which variant is used, all processors must always be able to exchange data and instructions with each other. The memory access takes place via a so-called interconnect, a connection network for the transfer of data and commands. The interconnect in clusters is an important component for exchanging and communicating data between management and load distribution processes. [^26]

In systems with shared memory, all processors share a memory. The memory is divided into fixed memory modules that form a uniform address space that can be accessed by all processors. The von Neumann bottleneck comes into play here, which means that the interconnect, in this case the data and instruction bus, becomes the bottleneck between memory and processor. Due to the sequential or step-by-step processing of program instructions, only as many actions can be performed as the bus is capable of. As soon as the speed of the bus is significantly lower than the speed of the processors, the processors repeatedly have to wait. In practice, the waiting time is circumvented by the use of buffer memories (cache), which is located between the processor and the memory. This ensures that program commands are available to the processor quickly and directly. [^27]

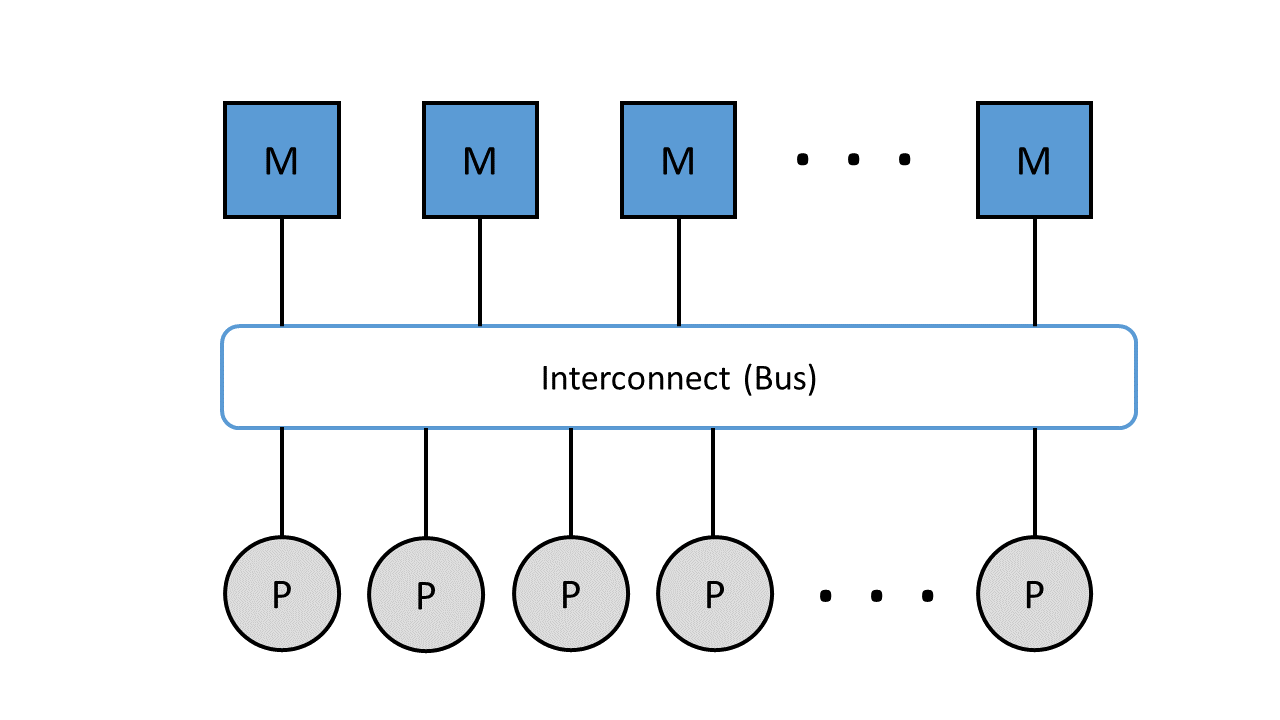

Figure 7 shows the representation of memory (M) and processors (P) connected via the interconnect.

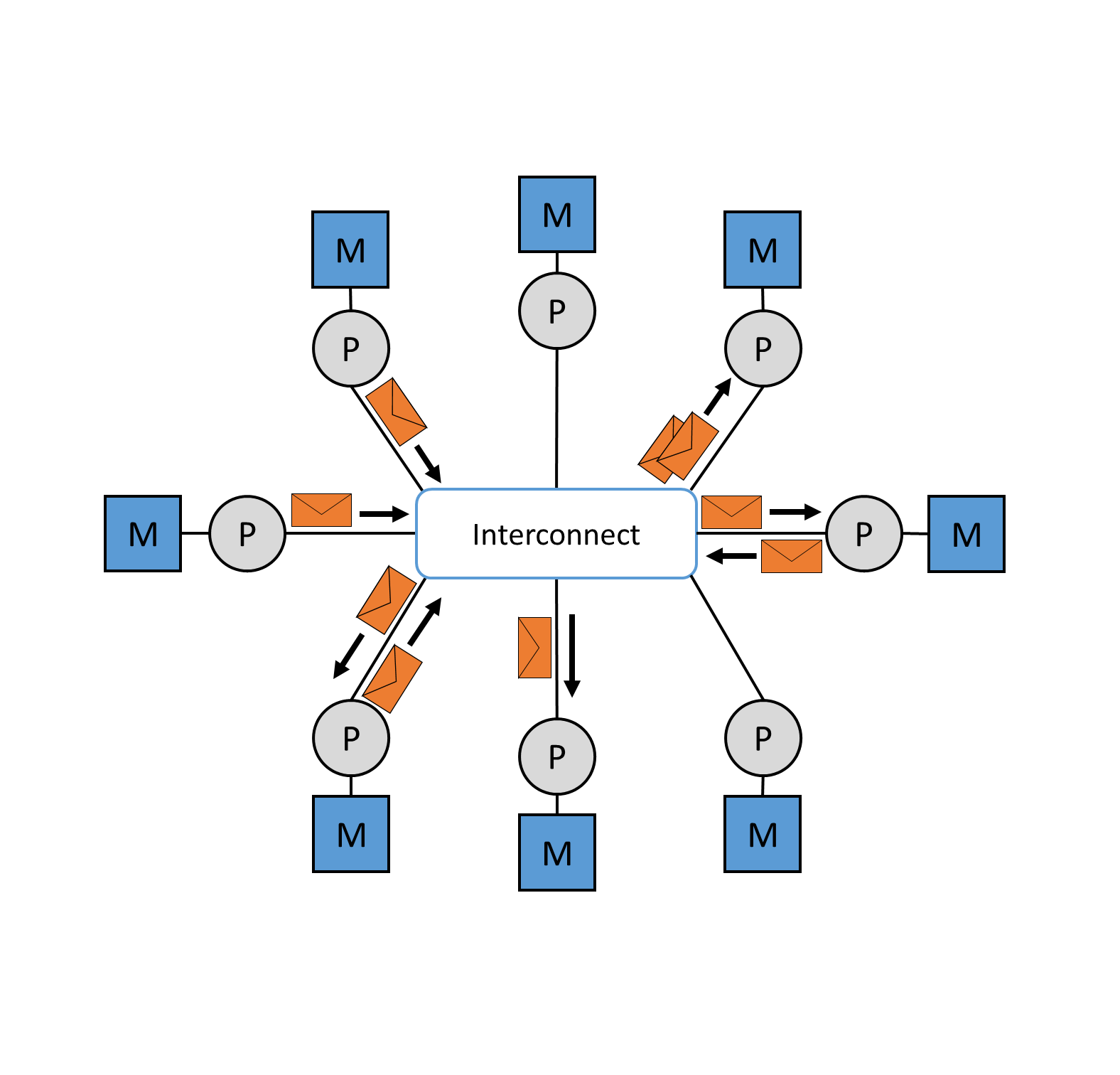

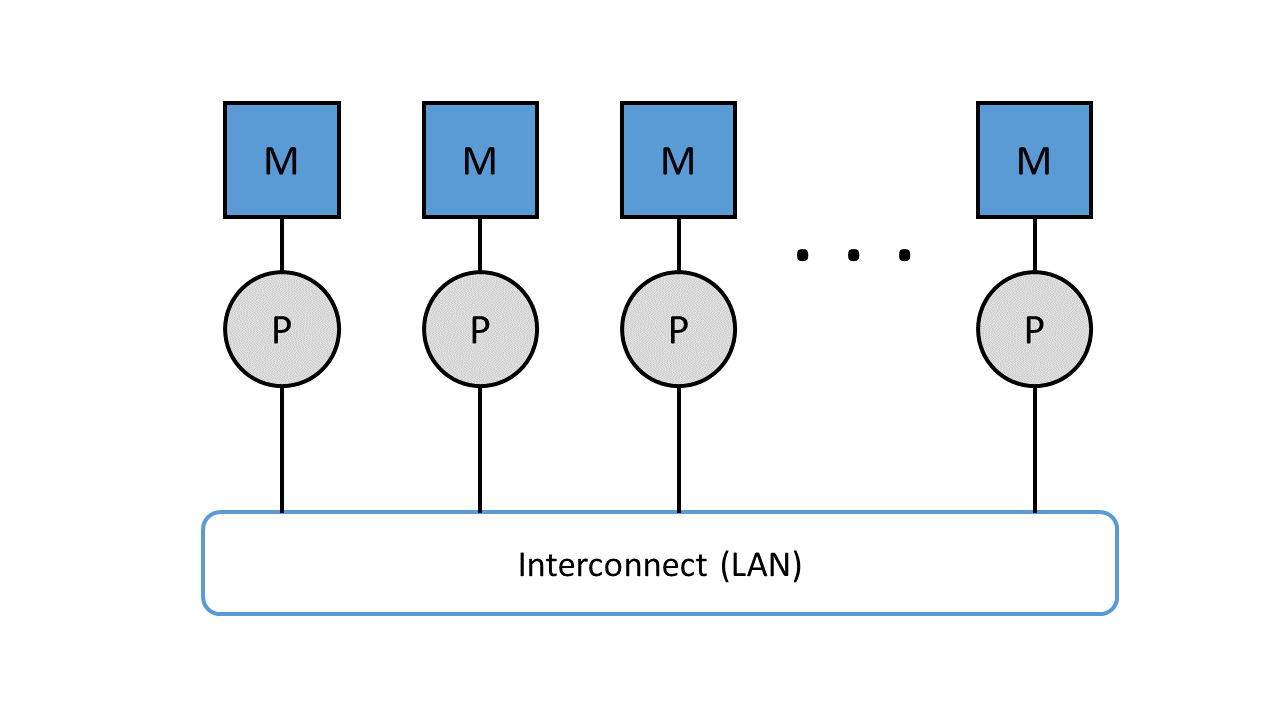

Computer systems with distributed memory, on the other hand, have a separate memory for each processor. In this case, a connection network is required. As soon as a shared memory is dispensed with, the number of processors can be increased without any problems. By using a distributed memory, each processor gains the upper hand over its address space, since it is allocated its own local memory. Similar to distributed memory, communication takes place via an interconnect, which in this case is a local network. The advantage of computer systems with distributed memory is the increase in the number of processors, but the disadvantage lies in the disproportion between computing and communication performance, since the transport of data between CPU (Central Processing Unit) and memory is much slower. The bottleneck is not in the bus as with distributed memory, but in the local network. [^28]

As soon as processor systems are operated with shared memory, through the use of multi-core processors, the complexity and expense of the electronics to be implemented increases. This consequently entails higher costs. A single system with, for example, 128 multicore processors is very expensive and is therefore out of the question for massively parallel applications. It is far more cost-effective to operate 128 PCs, for example, with the same hardware, each with one processor and distributed memory.

Message Passing Interface

Message Passing Interfaces (MPI) is a standardized and portable message passing standard for message transmission between cluster nodes with distributed memory (see Figure 9). This concept was developed by a group of researchers from academia and industry to enable the development of a variety of parallel computing architectures. The standard defines syntax and semantics that are useful to a wide variety of users. It is not a standardized protocol, but acts as a programming interface for serial code used by the C and Fortran programming languages. MPI is the most widely used model for parallel and concurrent programming today. Currently used MPI implementations are MPI/Pro and Local Area Multiprocessor (LAM) MPI. Both implementations are now fixed components of Linux distributions. Another message-based model is the Parallel Virtual Machine (PVM) platform. This allows several computers with a Windows or Linux operating system to be combined to form a parallel system with distributed memory. [^29]

High-Availibility Cluster

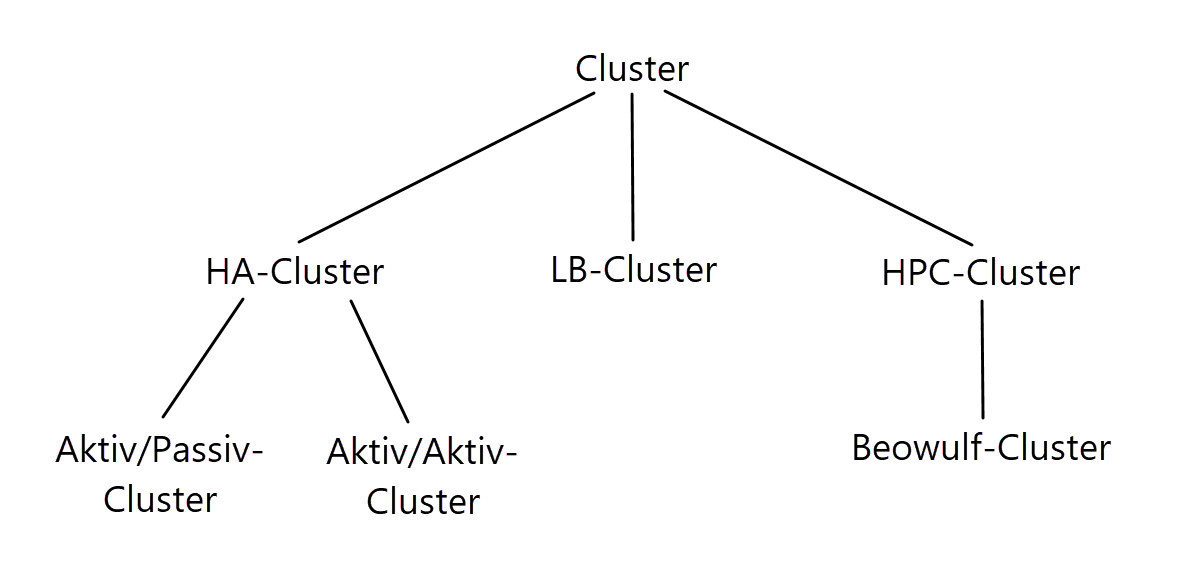

There are many different application scenarios for clusters. The most popular uses are high-availability (HA), high-performance computing (HPC) and load balancing (LB). These types of computer networks are subdivided as follows in the diagram below.

High availability cluster or failover cluster pursues the goal of avoiding one or more single points of failure. In a cluster, a specific system component is defined as SPOF as soon as it is designed as non-redundant. A failover cluster is a group of servers configured so that if one or more servers fail, another server automatically takes over their service and continues processing. Each server in the cluster has at least one other teammate, which functions as a so-called standby server or partner server. The simplest variant of an HA cluster is usually found in the 2-node solution, which is either symmetrically or asymmetrically structured, depending on the architecture. An asymmetrically structured cluster is an active/passive cluster, i.e. as soon as one of the nodes has a fault, its passive partner node steps in and takes over its services and function. A symmetrical active/active cluster, on the other hand, keeps both server nodes active. In this case, various services are shared between the two nodes for load balancing. In this case, high availability and load balancing are provided at the same time.

If one of the nodes fails, the active partner takes over its services and the cluster remains available, not highly available but still in a running mode. [^30]

For a standby server to be able to step in as an active server at all, it must use a certain technique to determine that its active partner server is no longer functioning. This is usually done by a so-called heartbeat mechanism. This typically runs as a service on both server nodes. The communication between the services runs over a local, dedicated as well as redundant network. They communicate with each other and check each other for signs of life - their heartbeat. As soon as there are more than 2 nodes in a cluster, they also monitor each other using various heartbeat techniques. Using push heartbeat, active servers send signals to their respective standby servers at a fixed interval. If one of the standby servers no longer receives a signal, it assumes that its partner has failed and takes over the active role. Based on a pull heartbeat, the standby server sends a certain number of requests to its active partner. If the limit of these requests is reached without a valid response from its partner, the partner takes over its services and thus assumes the active part. [^31]

High-Performance Computing Cluster

The goal of HPC clusters is to process complex computing tasks or simulation applications, in parallel on all cluster nodes. The combination of all cluster nodes thus results in immensely high computing power. All nodes must consist of homogeneous or similar hardware components in order to simplify the administration effort and maintenance and to be able to handle error sources more easily. Furthermore, all nodes are connected to each other via a local network and usually access a common data storage. As soon as an application falls into one of the following categories, increased requirements are placed on memory, network and processors:

• computing-intensive applications
• memory-intensive applications
• communication-intensive applications

Because of this, these types of clusters must provide high resilience, high availability, and high redundancy.

The use of high-performance clusters, takes place in particularly computationally intensive applications, which are often used in the scientific field. [^32]

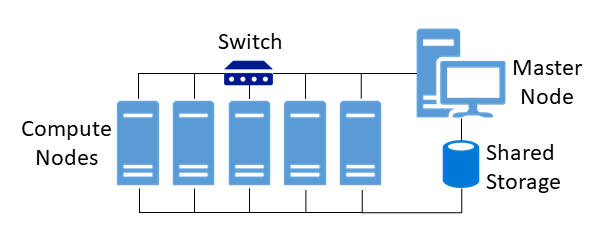

Figure 11 shows a typical architecture of an HPC cluster. All compute nodes, also called working nodes, are connected via a local network by means of a switch. In addition, there is a so-called shared storage. This should not be confused with shared memory, which is only used in processor systems (see Shared and distributed Storage). Shared storage is used for the joint and simultaneous access and exchange or intermediate storage of data, such as specially required application data or databases. Master nodes or front-end nodes form the central work platform for users, on which they can log in via a console terminal and interact with the cluster. Computing jobs are initiated and applications installed via this platform. [^33]

The first multiprocessor clusters trimmed to high-performance computing, such as the VAX-11/780, came onto the market in 1977 under the name VAXCluster or VMSCluster. The technology pioneer at that time was Hewlett-Packard (HP), then under the company name Digital Equipment Corporation (DEC). VAX stands for Virtual Address eXtension and, in conjunction with the OpenVMS(virtual memory system) operating system specially developed for this purpose, was a powerful tool in terms of security, stability and low downtimes. Another notable example of an HPC cluster that focuses more on low-cost high-performance computing is a Beowulf cluster, which we will discuss in more detail in section High-Performance Computing Cluster. [^34]

Load-Balanced Cluster

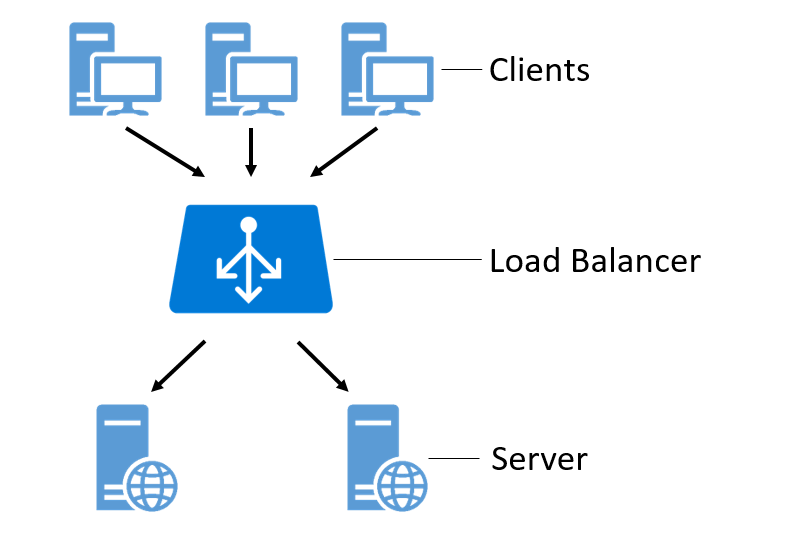

Processing large amounts of data can lead to high loads on individual nodes and must be managed. Server nodes have limited CPU, memory or network capacity and cannot handle all loads on their own. Furthermore, certain applications can only use or rely on a certain number of processors. A load-balanced cluster is a computer network optimized for load distribution. By distributing the data volumes over several identical computers, the system is protected against total failures. Likewise, the function of uniform performance availability is maintained as capacity or computational requirements change during operation. Figure 12 shows a cluster-internal load balancer that distributes client requests evenly across all servers. [^35]

Management for intelligent distribution of data streams is handled by these various distribution algorithms:

• Round-Robin algorithm: All computational requests and loads are distributed evenly to each server, regardless of the current number of connections or response times. Round-robin is best suited when the servers in the cluster have equal processing capabilities based on hardware. Otherwise, some servers will receive more requests than they can handle, while others will consume only a portion of their resources.

• Weighted Round-Robin: A weighted round-robin algorithm takes into account the different processing capabilities of each server. Users manually assign a performance weight to each server, and a scheduling sequence is automatically generated depending on the server weight. Requests are then routed to the different servers according to a round-robin scheduling sequence. This algorithm makes sense as soon as one or more servers have different performance strengths and maintain a performance equilibrium according to their weightings.

• Least-Connection Algorithm: Only requests are sent to the server in a cluster based on which currently serves the fewest connections.

• Load-Based Algorithm: Similar to Least-Connection, only certain requests are sent to the cluster; in a load-balanced algorithm, only requests are sent to servers that currently have the lowest load.

Beowulf Cluster

A Beowulf Cluster is a computer design that provides parallel processing across multiple computers to create a low-cost, high-performance supercomputer. The name Beowulf, translated into German, means werewolf and, in this context, comes from an Old English heroic poem and has since stood as a meaningful emblem of the power such a cluster can deliver. The first clusters of this type were developed in 1994 by scientists Thomas Sterling, Donald Becker and Phil Merkey to support the Earth and Space Sciences Project (ESS) at the National Aeronautics and Space Administration (NASA). [^36]

A Beowulf Cluster in practice is typically a collection of generic computers, either commodity PCs or larger server systems, that are independently procured, assembled, and connected via an internal network. A Beowulf cluster consists of two types of computers, a main (master) computer and multiple computer nodes. When a complex problem or large data set is given to a Beowulf cluster, the master computer first runs a program that breaks the problem into small pieces and sends one piece at a time to each node to compute. When the nodes finish their tasks, the master continuously sends more pieces to them until the entire problem is solved. [^37]

When Thomas Sterling and Donald J. Becker started up their cluster in 1994, it consisted of sixteen Linux PCs, each with 100 MHz Intel DX4 processors. The individual computers were connected via Ethernet for the required data exchange. Several benchmark tests were performed, which test the performance of computers by measuring the number of floating point number calculations possible per second. The measurement is given in Floating Point Operations Per Second (FLOPS). The results of the tests were surprising with 4.5 MegaFLOPS per node and 60 MegaFLOPS in total. This corresponds to a speedup of 13.33 or an efficiency of 83%. These results are impressive for the reason that this performance was comparable to the supercomputers from IBM and Co. at the time. The remarkable thing, however, is that this cluster was operated at only a fraction of the cost of supercomputers. [^38]

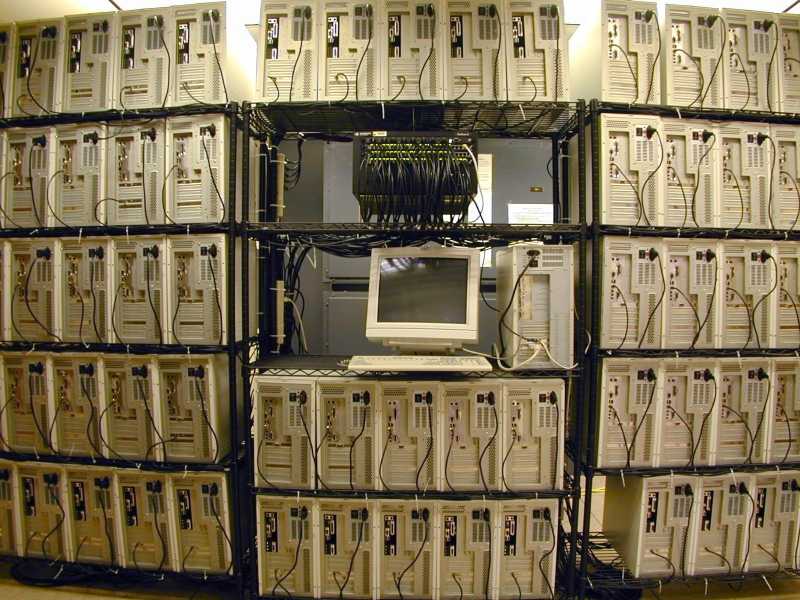

The following figure shows a Beowulf cluster with 64 PC nodes, which was developed by Phil Merkey at Michigan Technological University, also for the ESS project.

Virtualization

Before we delve a little deeper into the chapter Container Management Systems (see Container Management Systems), we will look at the basic technology of virtualization. This foundational technology is necessary for the operation of container technologies like Docker. In computer science, virtualization refers to the creation of a virtual, rather than actual, version of something, such as an operating system, server, storage device, or network resources. Virtualization refers to a technology in which an application or an entire operating system is abstracted from the actual underlying hardware. In connection with container technologies, a well-known type of virtualization, we distinguish here between two techniques of virtualization, hypervisor-based and container-based virtualization. [^39]

Hypervisor-based virtualization

A key application of virtualization technology is server virtualization, which uses a software layer called a hypervisor to emulate hardware such as memory, CPU, and networking. The guest OS, which normally interacts with real hardware, implements this with a software emulation of that hardware, and often the guest OS has no idea it is running on virtualized hardware. The hypervisor decides which guest OS gets how much memory, processor time and other resources from the host machine. In this case, the host machine runs the host OS and the hypervisor. This means each OS appears to have direct access to the processor and memory, but the hypervisor actually controls the host processor and resources by allocating what is needed by each OS. While the performance of this virtual machine does not match the performance of the OS running on real hardware, the concept of hypervisor-based virtualization works quite well because most OSes and applications do not require full use of the underlying hardware. This allows for greater flexibility, control and isolation by eliminating dependency on a specific hardware platform. Originally intended for server virtualization, the concept of virtualization has expanded to applications, which is implemented using isolated containers. [^40]

Container-based virtualization

Container virtualization or container-based virtualization is a method of virtualizing applications but also entire operating systems. Containers in this sense are isolated partitions that are integrated into the kernel of a host machine. In these isolated partitions, multiple instances of applications can run without the need for an OS. This means that the OS is virtualized, while the containers that run inside the system have processes that have their own identity and are thus isolated from another process in another container. Software running in containers communicates directly with the host kernel and must be executable on the operating system and CPU architecture on which the host is running. By not emulating hardware and booting a complete operating system, containers can be started in a few milliseconds and are more efficient than traditional virtual machines. Container images are typically smaller than virtual machine images because container images do not need to contain device drivers or a core to run an operating system. Because of the compactness of these application containers, they find their predominant use in software development. Developers do not have to set up their development machines by hand; instead, they use pre-built container images. These images are memory maps of entire application structures that can be arbitrarily moved back and forth between different host machines, also called shipping. This is one of the reasons why container-based virtualization has become increasingly popular in recent years. [^41]

Examples of container platforms are Docker from Docker Inc. and rkt from the developers of the CoreOS operating system, with Docker enjoying increasing popularity in recent years. Compared to virtual machines, Docker represents a simplified solution to virtualization. [^42]

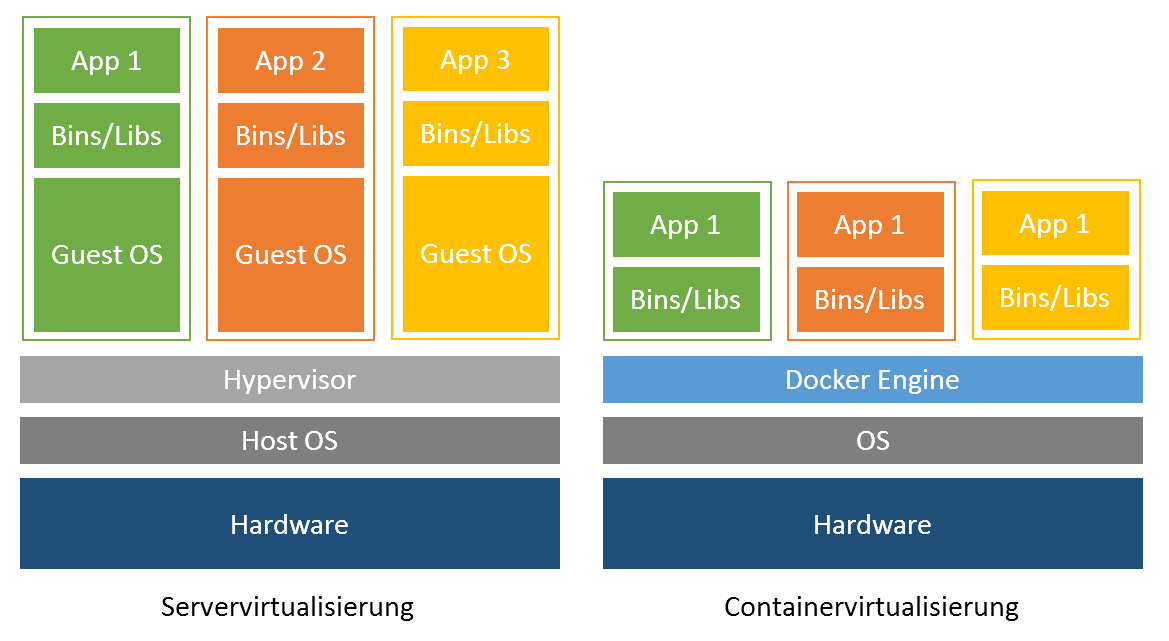

Figure 14 shows the key difference between container-based and hypervisor-based virtualization.

Container Management Systems

As soon as several containers are to be distributed and run on a parallel system such as a cluster, it is necessary to use a container management system. Such a system manages, scales and automates the deployment of application containers. Well-known open source systems are Kubernetes from Google or Docker Swarm. Another very well-known container manager worth mentioning is the OpenShift software from Redhat, but we will not discuss it further in this paper. These cluster management tools play an important role as soon as a cluster has to take care of tasks such as load balancing and scaling. In the following, we will introduce the first two container managers mentioned and explain their structure and use with containers.

Docker Swarm

Docker is an open standards platform for developing, packaging, and running portable distributed applications. With Docker, developers and system administrators can create, deliver, and run applications on any platform, such as a PC, the cloud, or a virtual machine. Obtaining all the necessary dependencies for a software application, including code, runtime libraries, and system tools and libraries, is often a challenge when developing and running an application.

Docker simplifies application development and execution by consolidating all the required software for an application, including dependencies, into a single software unit called a Docker image that can run on any platform and environment. The Docker software, based on the Docker image runs in an isolated environment called a Docker container, which contains its own file system and environment variables. Docker containers are isolated from each other and from the underlying operating system. [^43]

One solution already integrated into Docker is Docker Swarm Mode. Docker Swarm is a cluster manager for Docker containers. Swarm allows administrators and developers to set up and manage a cluster consisting of multiple Docker nodes as a single virtual system. Swarm mode is based on Docker Engine, the layer between the operating system and container images. Clustering is an important feature for container technology because it creates a cooperative group of systems that provides redundancy and enables failover when one or more nodes experience a failure. A Docker Swarm Cluster provides users and developers the ability to add or remove containers as compute requirements change. A user or administrator controls a swarm through a swarm manager, which orchestrates and deploys containers. Figure 15 shows the schematic structure and relationship between instances. [^44]

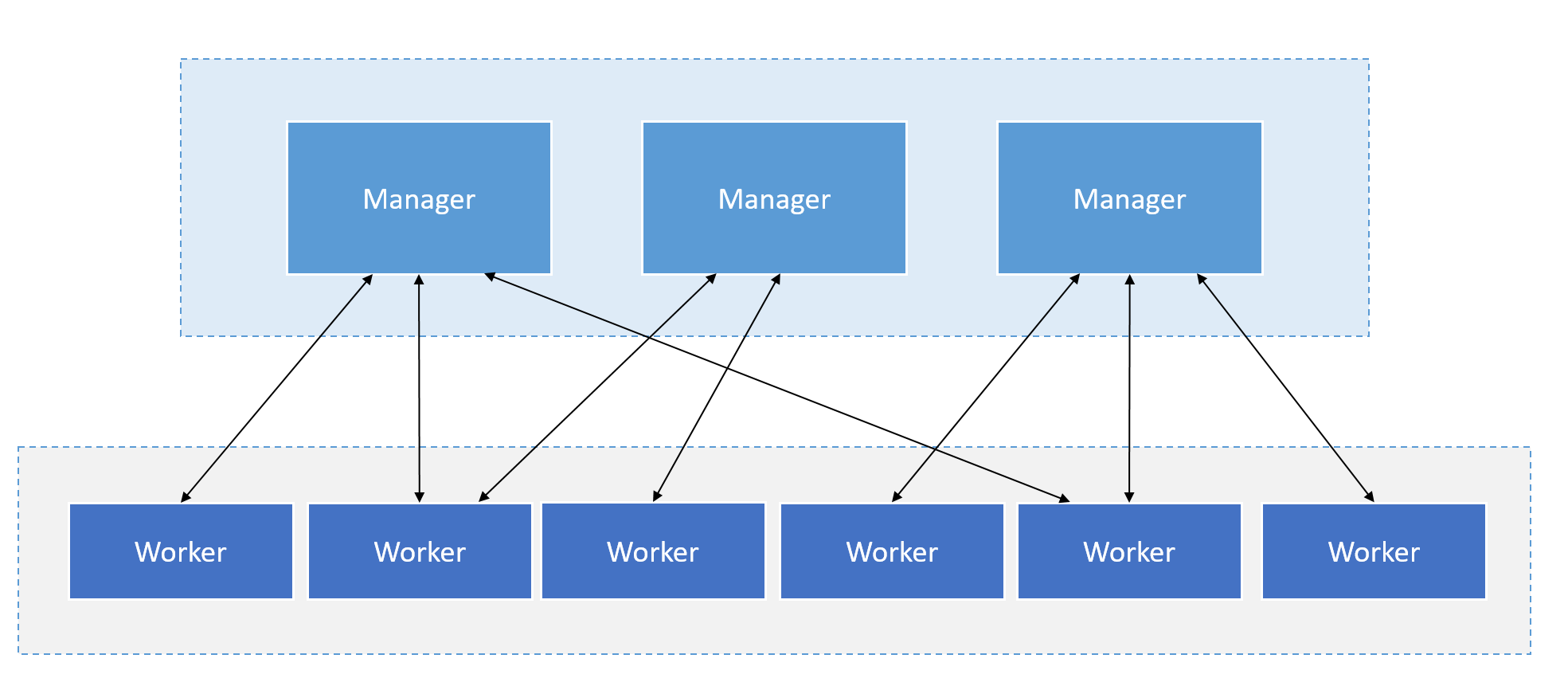

The Swarm Manager allows a user to create a primary manager instance and multiple replica instances in case the primary instance fails, similar to an active/passive cluster. In Docker Engine's swarm mode, the user can provision so-called master nodes and worker nodes at runtime. [^45]

Google Kubernetes

The name Kubernetes comes from the Greek and means helmsman or pilot. Kubernetes is known in specialist circles by the acronym K8s. K8s is an acronym where the eight letters "ubernete" are replaced by "8". Kubernetes provides a platform for scaling, automatically deploying and managing container applications on distributed machines. It is an orchestration tool and supports container tools such as Apache Mesos, Packer, and including Docker. [^46]

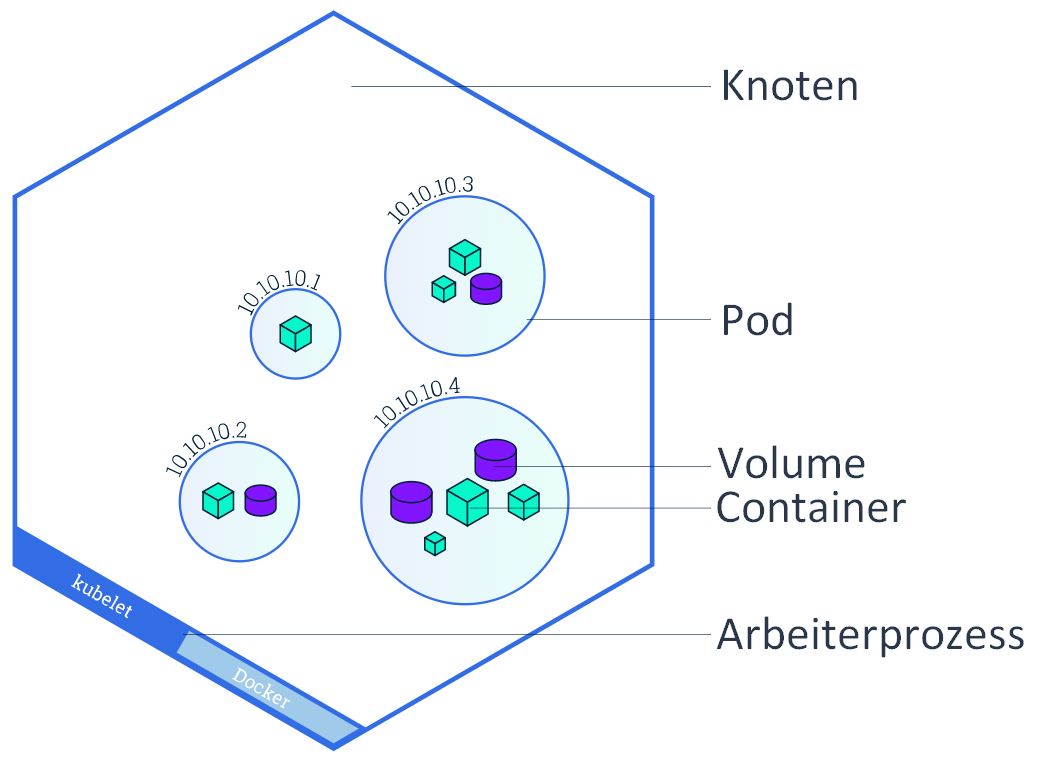

A Kubernetes system consists of master and worker nodes, the same system principle as Docker Engine, with manager instances named master. The smallest unit in a Kubernetes cluster is a pod and runs in the worker nodes. This pod consists of at least one or more containers. A worker node can in turn run multiple pods. A pod is a worker process that shares virtual resources such as network and volume among its containers. [^47]

The following services run on the individual worker nodes: [^48]

• Docker: providing the container engine.
• kubelet: Agent, which takes over the management of the containers.
• kube-proxy: Service that handles network management and port forwarding to and from containers.

The main nodes take care of the management and controlling of all nodes. The following services are divided here: [^49]

• kube-apiserver: User interface to the nodes.
• etcd: Storage location of the cluster configurations, the so-called key-value store.
• kube-scheduler: The scheduler determines, depending on the available resources, which worker nodes are assigned which pods.
• kube-controller-manager: This manager service takes over the controlling functions and monitors if all nodes are working, which pods are assigned to which service and manages port forwarding.

Raspberry Pi

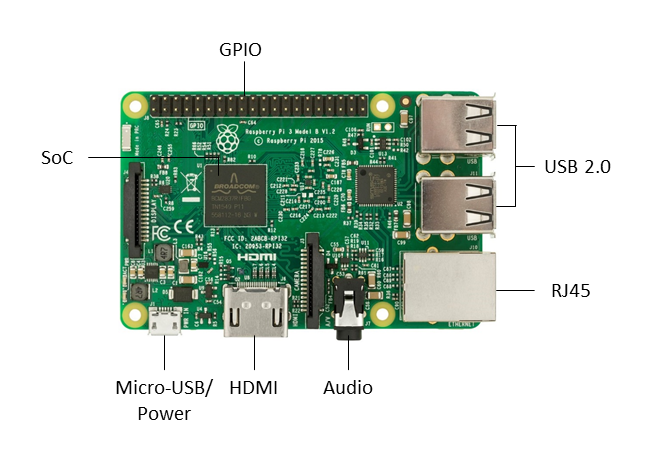

Credit-card-sized single-board computers (SBCs) such as the Raspberry Pi, developed in the UK by the Raspberry Pi Foundation, were originally intended to promote computer science education in schools. Acronyms like "RPi" or the abbreviation "RasPi" or "Pi" for the Raspberry Pi are mostly common here. Like smartphones, single-board computers are equipped with ARM processors (Advanced RISC Machines). Before the development of ARM in 1983, there were mainly CISC and RISC processors on the market. CISC stands for Complex Instruction Set Computer. Processors with this architecture are characterized by extremely complex instruction sets. Processors with RISC (Reduced Instruction Set Computer) architectures, on the other hand, have a restricted instruction set and therefore also operate with low power requirements. The Pi's board is equipped with a system-on-a-chip (SoC, i.e. single-chip system), which has the identifier BCM2837 from Broadcom. The SoC consists of a 1.2 GHz ARM Cortex-A53 Quad Core CPU, a VideoCore IV GPU (Graphics Processing Unit) and 512 MB of RAM. It does not include a built-in hard drive, but uses an SD card for booting and permanent data storage. It has an Ethernet port based on the RJ45 standard for connecting to a network, an HDMI port for connecting to a monitor or TV, USB (Universal Serial Bus) ports for connecting a keyboard and mouse, and a 3.5 mm jack for audio and video output. [^50]

An average of 35 EUR is the price one pays for a Raspberry Pi, which makes it economically suitable for use and integration into a cluster system, since the unit costs for individual nodes are low. [^51]

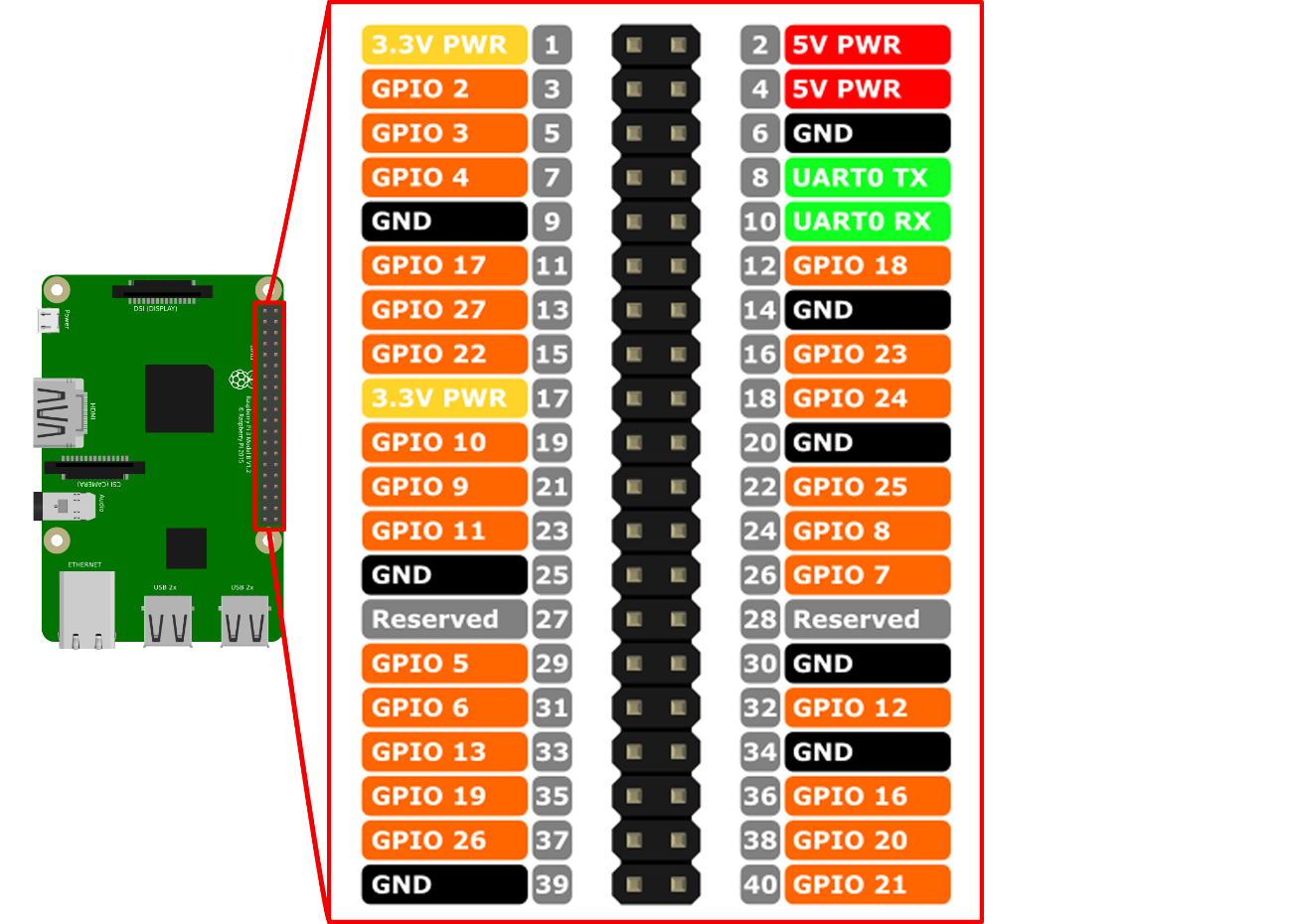

General Purpose Input Output (GPIO) is the name for programmable inputs and outputs for general purposes. A Raspberry Pi has a total of 40 GPIO pins, twelve of which are for power supply and 28 of which serve as an interface to other systems in order to communicate with or control them. GPIO pins 3 and 5 (see Figure 18) enable devices such as an LCD display to be addressed by means of an Inter-Integrated Circuit (I2C), a serial data bus.

Conception and design
